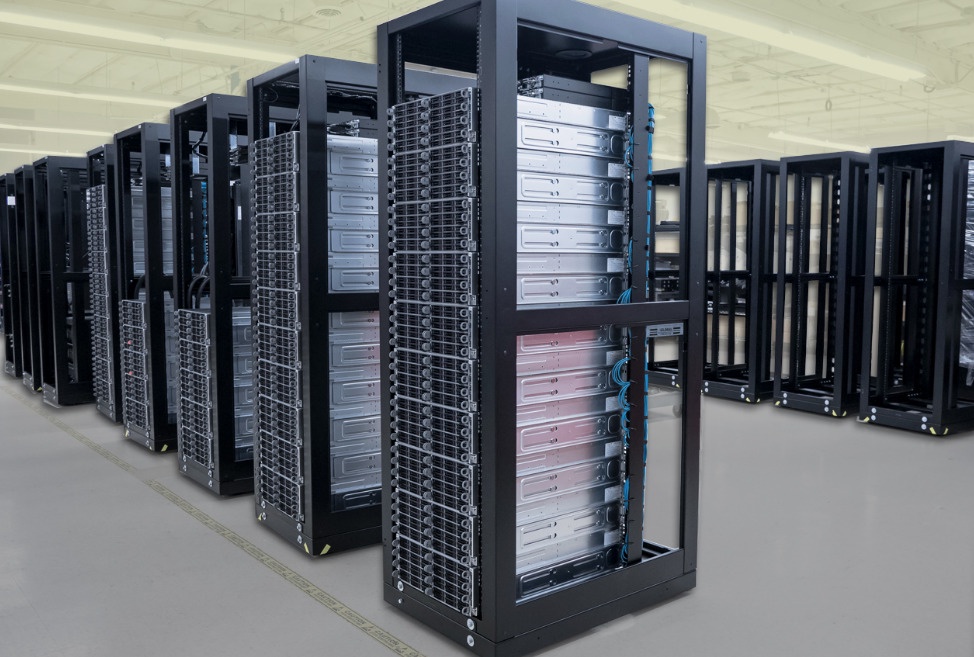

As data centers evolve and rack servers become increasingly packed with powerful hardware, managing heat has become one of the biggest challenges for IT infrastructure. High-performance servers generate immense amounts of heat, and as the density of these racks increases, traditional cooling methods often fail to keep up.
Without effective cooling, servers can overheat, leading to slowdowns, system failures, and reduced hardware lifespan. To address this, engineers are developing cutting-edge cooling technologies that promise to keep the temperature in check while improving performance and efficiency.
The Techbuyer says that data centers using AI for thermal management report a 20-25% increase in cooling efficiency, optimizing energy use while maintaining performance.
Here are five innovative cooling solutions that are transforming how data centers manage heat in densely packed rack servers:
1. Liquid Cooling Systems
Liquid cooling systems are one of the most efficient ways to manage heat in high-density rack server. Unlike traditional air cooling, which relies on fans to blow cool air over components, liquid cooling uses coolant fluids to absorb heat directly from the rack server’s components. These systems typically include:
- Direct-to-chip cooling: Coolant flows directly over or around the processor, absorbing heat at the source.
- Immersion cooling: Servers are submerged in a special dielectric fluid that absorbs heat and is then circulated to a heat exchanger.
By using liquids, these systems can cool components more effectively and with less energy than traditional air-based solutions. They’re especially useful in environments where server density is extremely high, and air cooling simply isn’t enough.
2. Rear Door Heat Exchangers
Rear door heat exchangers are an increasingly popular solution for cooling dense server racks. These exchangers are mounted directly to the back of the server rack, with a liquid-based cooling system integrated into the door. The heat from the servers is transferred to the liquid, which then cools down before circulating back through the system.
This solution works by:
- Directly absorbing heat: As the hot air exits the servers, the heat exchanger absorbs it before it can spread into the data center.
- Efficient cooling: The system is self-contained, meaning it doesn't require additional floor space or major alterations to the server layout.
It’s a cost-effective solution for existing data centers looking to upgrade their cooling without a complete overhaul of their infrastructure.
3. Air-to-Air Heat Exchange Systems
Air-to-air heat exchange systems combine the best of air cooling and liquid cooling. These systems use a heat exchanger to transfer heat from the inside of the server to outside air, helping to maintain optimal internal temperatures.
According to FS Community, by 2027, 50% of new data centers are expected to adopt liquid cooling for dense server racks to meet the increasing demands of high-performance computing.
The technology uses a two-stage cooling process, where hot air from the servers is passed through a heat exchanger, cooled by external air, and then released back into the environment.
The advantages include:
- Energy efficiency: By using external air to cool down the internal temperatures, these systems reduce the energy needed for traditional air conditioning.
- Scalability: They can be installed in a variety of configurations, making them ideal for high-density rack environments.
This solution is particularly effective in regions where cooler external air can be used in the cooling process, reducing the need for complex and expensive infrastructure.
4. Cold Plate Cooling Systems
Cold plate cooling systems use a series of metal plates—often made of copper or aluminum—that are attached directly to the heat-generating components inside the servers.
These plates have a coolant running through them, which absorbs heat as it passes over the surface. The coolant is then pumped away to a heat exchanger, where it’s cooled before being recirculated.
Key benefits include:
- Localized cooling: Directly cooling the heat sources (like CPUs and GPUs) minimizes the amount of heat transferred to other components, improving overall system performance.
- Energy efficiency: Cold plates are extremely efficient because they focus on the parts of the server that generate the most heat, reducing the need for large fans or air conditioning.
Cold plate cooling is particularly effective for server environments that rely on high-performance components, such as GPUs used in AI processing or advanced computing tasks.
5. Thermoelectric Coolers (TEC)
Thermoelectric coolers, also known as Peltier devices, are a promising cooling solution for high-density 2U rack servers. These devices use the Peltier effect, where heat is absorbed on one side of the device and released on the other when an electric current is applied.
TEC devices are small, quiet, and energy-efficient, which makes them ideal for:
- Point-of-use cooling: They can be attached directly to hot components to quickly draw away excess heat.
- Silent operation: TECs don’t rely on noisy fans, making them a good choice for noise-sensitive environments.
While they aren't as widely adopted yet as liquid cooling or air-based methods, TECs offer a compact and precise solution for specific cooling needs, particularly in smaller, densely packed setups.
6. Environmental and Cost Benefits
As businesses increasingly focus on energy efficiency and sustainability, the environmental and cost-saving advantages of advanced cooling technologies cannot be overlooked. High-density rack servers, which generate a lot of heat, have traditionally relied on energy-intensive air conditioning systems.
- Energy Efficiency: Many of these cooling methods, especially liquid cooling and thermoelectric coolers, consume less energy than traditional air conditioning, which can significantly reduce operational costs.
- Sustainability: By lowering energy consumption, these cooling solutions also help businesses reduce their carbon footprint, contributing to greener data center operations.
Conclusion
As server densities continue to rise, traditional air cooling methods are simply no longer enough to keep up. These five innovative cooling solutions—liquid cooling, rear door heat exchangers, air-to-air systems, cold plates, and thermoelectric coolers—are at the forefront of the next generation of data center cooling technology.
Each method brings its own unique benefits to the table, depending on the specific cooling challenges faced by data centers. By adopting these advanced solutions, businesses can ensure that their servers stay cool, efficient, and operational—no matter how densely packed the racks may become.
