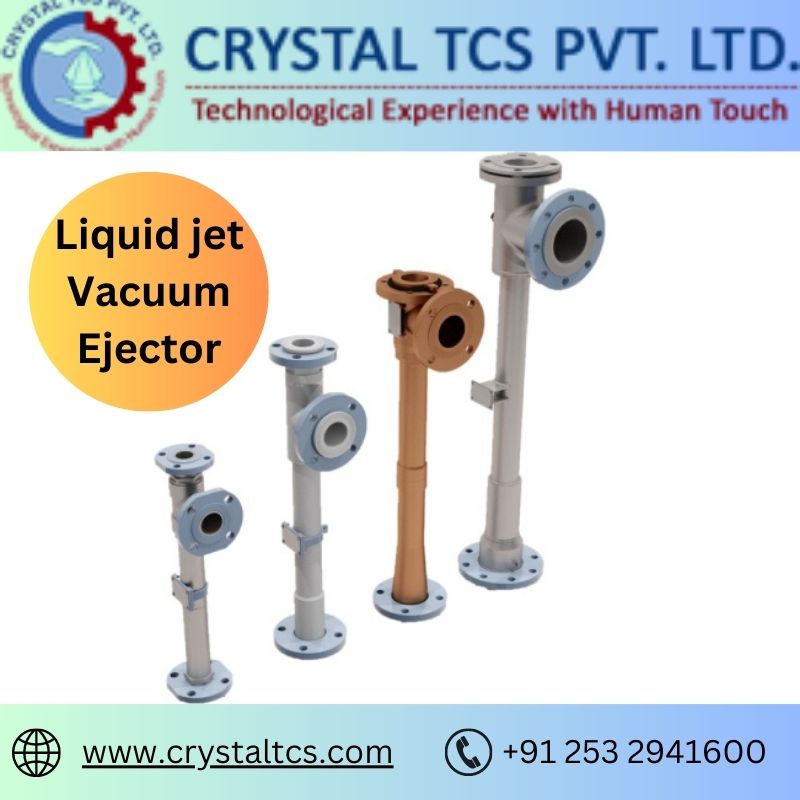

A Liquid jet Vacuum Ejector, also known as a liquid jet pump or jet ejector, is a versatile device used in various industrial processes to create a vacuum or negative pressure. It operates based on the principle of entrainment, utilizing the kinetic energy of a high-velocity liquid jet to entrain and mix with a gas or vapor, resulting in the creation of a low-pressure zone. This low-pressure zone can then be used for a wide range of applications such as suction, mixing, or gas compression.
Principle of Operation:
The Liquid Ejector Supplier works on the Venturi effect principle. It consists of three main sections: a motive liquid nozzle, a mixing chamber, and a diffuser. The motive liquid nozzle is designed to convert the pressure energy of the motive liquid (usually water) into kinetic energy as it passes through a converging-diverging nozzle. This creates a high-velocity jet of liquid that enters the mixing chamber.
In the mixing chamber, the high-velocity liquid jet entrains and mixes with the surrounding gas or vapor, which may be at a higher pressure. The entrainment occurs as the liquid jet pulls and carries the gas or vapor along with it, resulting in a mixture of liquid and gas or vapor within the chamber.
Next, the mixture flows into the diffuser section, which is a diverging section of the ejector. The cross-sectional area of the diffuser gradually increases, leading to a reduction in fluid velocity and an increase in pressure. The reduction in fluid velocity causes a drop in kinetic energy, which is converted back into pressure energy, resulting in the generation of a low-pressure zone at the outlet of the ejector. This low-pressure zone can be utilized for different purposes depending on the specific application.
Applications:
Liquid jet vacuum ejectors find applications in various industries due to their simplicity, reliability, and low maintenance requirements. Some common applications include:
Vacuum Generation: One of the primary uses of liquid jet vacuum ejectors is for creating a vacuum. They are employed in processes where the removal of gases, vapors, or unwanted substances is required. Industries such as chemical processing, pharmaceuticals, and food processing use vacuum ejectors for this purpose.
Suction and Pump Priming: Liquid jet vacuum ejectors are used for suction and priming in pump systems. They help in lifting fluids or slurries from lower levels to higher levels by generating the necessary suction at the inlet of the pump.
Gas Compression: In certain cases, Liquid jet Vacuum Pump can be used to compress gases or vapors. By supplying motive liquid at high pressure, the ejector compresses the entrained gas and discharges it at a higher pressure.
Mixing and Agitation: The mixing capability of liquid jet vacuum ejectors makes them useful in various industries for blending liquids or suspending solids in liquids. They find applications in chemical reactors, water treatment plants, and wastewater treatment facilities.
Venting and Degassing: Liquid jet vacuum ejectors are employed in processes where the removal of unwanted gases or vapors from a system is required. They are used for degassing applications, ensuring that gas bubbles are effectively removed from liquids.
Air Pollution Control: Liquid jet vacuum ejectors can be used to control air pollution by capturing and treating harmful gases or particulate matter. They are utilized in air pollution control systems and gas scrubbing processes.
Heat Exchange Systems: Liquid jet vacuum ejectors are incorporated into heat exchange systems for heat removal or cooling. They enhance heat transfer by promoting the mixing of fluids and facilitating temperature regulation.
Steam Ejectors: Steam ejectors are a specialized type of liquid jet vacuum ejectors that use steam as the motive fluid. They are widely used in power plants, refineries, and chemical plants for creating vacuum conditions and maintaining system efficiency.
Advantages:
Liquid jet vacuum ejectors offer several advantages in industrial applications:
Simple Design: They have a straightforward design and are relatively easy to install and operate.
Low Maintenance: Liquid jet vacuum ejectors have no moving parts, resulting in low maintenance requirements and reduced downtime.
Cost-Effective: They are cost-effective compared to other vacuum generation methods and require minimal energy consumption.
Versatility: Liquid jet vacuum ejectors can handle a wide range of gases, vapors, and liquids, making them suitable for diverse applications.
Reliability: They are known for their reliability, robustness, and long service life.
Safety: Liquid jet vacuum ejectors are inherently safe as they do not generate sparks or electrical discharge.
Conclusion:
Liquid jet Vacuum Ejector are valuable devices in various industries, offering vacuum generation, suction, mixing, gas compression, and more. Their simplicity, low maintenance, and cost-effectiveness make them a popular choice for many industrial processes. Whether it's creating a vacuum, removing gases, or enhancing mixing capabilities, liquid jet vacuum ejectors play a vital role in facilitating efficient and reliable operations across a wide range of applications.
