The Strength You Need: High Pressure Valves Explained

In the veins of modern industry, fluids and gases course through a complex network of pipes, carrying the lifeblood of countless processes. But controlling this flow isn't a simple task. Enter the high pressure valve: a workhorse of engineering, designed to withstand immense pressure and ensure the smooth, safe operation of various systems.

Understanding the Pressure: Why It Matters

Not all valves are created equal. While a standard valve might suffice for your garden hose, it wouldn't stand a chance against the forces at play in an oil refinery or a hydraulic press. This is where pressure ratings come in. High pressure valves are specifically built to handle these demanding environments, where fluids and gases are under extreme duress.

The pressure rating of a valve is measured in pounds per square inch (psi) and indicates the maximum pressure it can safely withstand. High pressure valves typically start from 1000 psi and can go well beyond, catering to various industrial applications.

Building for Strength: The Anatomy of a High Pressure Valve

So, what makes a high pressure valve different from its lower-pressure counterparts? The key lies in a combination of robust materials, meticulous design, and precision manufacturing.

• Material Muscle: High pressure valves are constructed from high-strength materials like forged stainless steel, chrome-moly steel, or exotic alloys. These materials possess exceptional tensile strength, meaning they can resist the pulling force exerted by the pressurized fluid without breaking.

• Design for Durability: The design of a high pressure valve prioritizes strength and leak prevention. This can involve thicker body walls, reinforced sealing mechanisms, and robust bolting patterns to ensure a secure closure against the internal pressure.

• Manufacturing Meticulousness: Every step of the manufacturing process for high pressure valves is crucial. Tight tolerances are maintained to ensure perfect fits, and non-destructive testing methods are employed to identify any potential weaknesses before the valve goes into service.

Types of High Pressure Valves: Geared for Different Flows

High pressure valves come in various configurations, each suited to a specific flow control requirement. Here are some of the most common types:

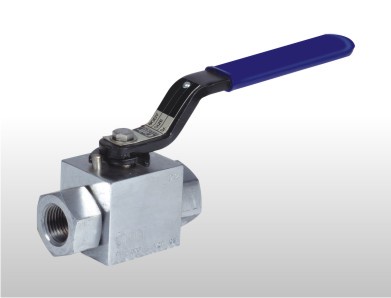

• Ball Valves: A simple yet effective design, ball valves utilize a spherical ball with a hole through its center to regulate flow. When the hole aligns with the flow path, the valve is open; a 90-degree rotation blocks the flow. Their simple design makes them ideal for on/off applications in high pressure systems.

• Gate Valves: These valves feature a wedge-shaped gate that slides up and down to control flow. Gate valves offer a near-complete closure, making them perfect for isolating sections of a pipeline for maintenance or safety purposes.

• Globe Valves: Globe valves have a more complex internal mechanism with a movable plug or disc that regulates flow. They offer good flow control capabilities and are suitable for throttling applications in high pressure environments.

• Check Valves: These one-way valves allow flow in only one direction, preventing backflow in a system. They are crucial for protecting pumps and other equipment from damage caused by pressure surges or reversed flow.

Applications: Where High Pressure Valves Shine

High pressure valves are the silent guardians in various industry sectors, ensuring the safe and efficient operation of critical systems. Here are some prominent applications:

• Oil and Gas Industry: From exploration and drilling to refining and transportation, high pressure valves control the flow of oil and gas under immense pressure within pipelines and processing equipment.

• Chemical Processing: The chemical industry relies on high pressure valves to handle a wide range of corrosive and hazardous fluids at extreme pressures.

• Power Generation: In power plants, high pressure valves regulate the flow of steam and water in boilers, turbines, and other critical components.

• Hydraulic Systems: These valves are the backbone of hydraulic systems, controlling the flow of high pressure fluids that power machinery in construction, manufacturing, and transportation industries.

Choosing the Right High Pressure Valve: It's All About Matching Needs

Selecting the right high pressure valve requires careful consideration of various factors. Here are some key points to remember:

• Pressure Rating: Ensure the valve's pressure rating exceeds the maximum pressure it will encounter in your application.

• Flow Requirements: Consider the type of flow control needed (on/off, throttling, one-way) and choose a valve design that best suits your purpose.

• Fluid Compatibility: The valve material needs to be compatible with the fluid being handled to prevent corrosion or degradation.

• Operating Environment: Factors like temperature, vibration, and presence of contaminants can influence valve selection.

Beyond Strength: Additional Considerations for High Pressure Valves

While strength is paramount, other factors contribute to the successful operation of high pressure valves:

• Actuation Methods: High pressure valves can be actuated manually, using hand wheels or levers. However, in many industrial applications, automated control is essential. Pneumatic and hydraulic actuators use compressed air or pressurized fluid, respectively, to open and close the valve remotely. For even more precise control, electric actuators are employed.

• Safety Features: High pressure systems demand robust safety measures. High pressure valves can incorporate features like pressure relief valves that automatically release excess pressure, preventing catastrophic failures. Additionally, they may have lockout/tagout provisions to ensure safe maintenance procedures.

• Maintenance and Inspection: Regular maintenance is crucial for ensuring the continued reliability of high pressure valves. This may involve periodic cleaning, lubrication, and replacement of worn-out parts. Rigorous inspection programs, often involving non-destructive testing techniques, help identify potential problems before they occur, preventing costly downtime and safety hazards.

The Future of High Pressure Valves: Innovation and Efficiency

The world of high pressure valves is constantly evolving. Here's a glimpse into some exciting advancements:

• Smarter Valves: The integration of sensors and communication capabilities into high pressure valves is paving the way for "smart" valves. These valves can monitor their own performance, providing valuable data on pressure, temperature, and flow characteristics. This information can be used for predictive maintenance and improved process optimization.

• Material Advancements: Material science is continuously developing new alloys with even greater strength and corrosion resistance. This allows for the creation of high pressure valves that can operate under even harsher conditions and with more demanding fluids.

• Focus on Efficiency: As the focus on energy efficiency grows, high pressure valve designs are being optimized to minimize pressure drops and improve flow characteristics. This translates to reduced energy consumption and improved overall system performance.

Conclusion: High Pressure Valves - The Unsung Heroes of Industry

High pressure valves may not be the most glamorous components in an industrial setting, but their role is undeniable. They are the silent guardians, ensuring the safe, efficient, and reliable operation of countless systems across various industries. As technology continues to advance, high pressure valves will become even more sophisticated, intelligent, and efficient, playing a vital role in the smooth functioning of our modern world.
